Buy Surron Light Bee Wheel Hub Assembly Online In Europe

Buy Surron Light Bee Wheel Hub Assembly Online In Europe is more than just the center that holds the wheel. It’s a precision-engineered component that integrates the bearings, axle interface, and sometimes brake components — all critical to delivering a smooth, responsive, and durable riding experience. For off-road e-bikes like the Sur-Ron Light Bee, the design must endure extreme terrain, shocks, and torque forces.

---

2. Overview of Wheel Hub Assembly in Electric Off-Road Bikes

2.1. Purpose and Function

The wheel hub assembly serves several important purposes:

• Connects the wheel to the frame via the axle.

• Houses the wheel bearings, which allow for smooth wheel rotation with minimal friction.

• Supports braking systems such as disc rotors or hub motors.

• Ensures stability, torque transfer, and load distribution.

In the Light Bee, the rear hub typically connects with the electric motor via chain drive, while the front hub may host the disc brake rotor and interfaces with the suspension forks. Buy Surron Light Bee Wheel Hub Assembly Online In Europe

---

3. Components of the Light Bee Wheel Hub Assembly

The Light Bee wheel hub assembly is made up of multiple components, each with specific functions and tolerances. Buy Surron Light Bee Wheel Hub Assembly Online In Europe

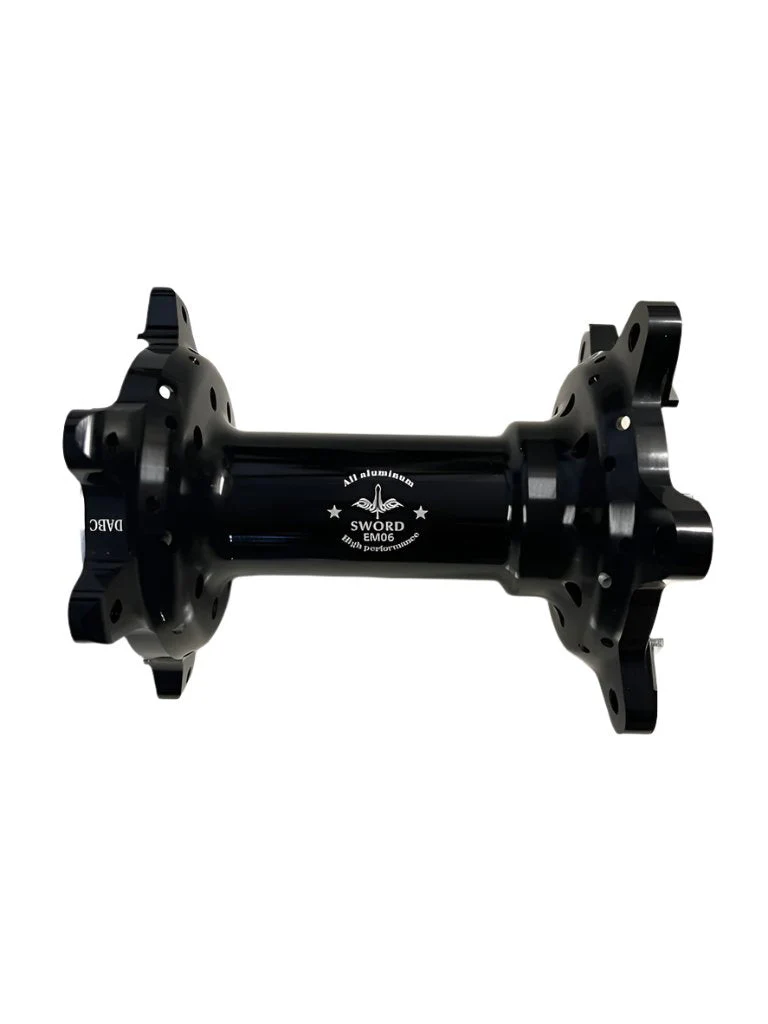

3.1. Hub Shell

• Usually CNC-machined from 6061-T6 or 7075 aluminum.

• Lightweight but extremely strong.

• Anodized in black or other colors for corrosion resistance and aesthetics.

• Features flanges with holes to accept spokes (usually 32 or 36 holes).

3.2. Bearings

• Typically sealed cartridge bearings (2 per hub).

• Offer low rolling resistance and protection against dirt/water.

• Quality hubs use Japanese or Swiss-made bearings (e.g., SKF, NSK).

• Sizes vary but are often 6001RS or 6902RS for durability and speed.

3.3. Axle

• May be hollow or solid chromoly steel or 7075-T6 aluminum.

• Fits into dropouts or through-axle mounts.

• High-precision machining ensures alignment and torque resistance.

• Can feature spacers, washers, or thread-locking nuts.

3.4. Disc Brake Mounts

• Usually 6-bolt IS standard (International Standard).

• Positioned on the non-drive side of the front hub and sometimes rear.

• High-tolerance alignment critical for rotor run-out and braking performance.

3.5. Spoke Interfaces

• Drilled holes in the hub shell flanges.

• Must match the rim’s hole count and lacing pattern (e.g., 3-cross).

• Oversized flanges provide strength and distribute spoke tension evenly.

---

4. Differences Between Front and Rear Hub Assemblies

4.1. Front Hub

• Simpler in structure.

• Only supports rotational motion and braking forces.

• May include thru-axle or quick release.

• Common sizes:

  • 100mm spacing (quick-release)

  • 110mm Boost spacing (thru-axle)

4.2. Rear Hub

• Must handle torque from the motor.

• Interfaces with sprockets or chainrings.

• Usually features wider spacing (e.g., 142mm or 148mm Boost).

• May include torque arms or anti-rotation tabs.

---

5. Material Considerations and Manufacturing Techniques

5.1. Materials

• 6061-T6 Aluminum: Standard alloy, corrosion-resistant, easy to machine.

• 7075-T6 Aluminum: Higher strength-to-weight ratio, premium option.

• Stainless Steel: Occasionally used for bushings or interfaces.

• Chromoly Steel: Used in axles for strength under torque.

5.2. Manufacturing Methods

• CNC Machining: Ensures high precision and tight tolerances.

• Anodizing: Adds durability, color, and corrosion resistance.

• Heat Treatment: Applied to axles for increased strength.

---

6. Compatibility with Aftermarket Components

Many Light Bee owners customize their hubs. It’s essential to match:

• Bolt pattern: For disc brakes, must match rotor.

• Spacing: Hub width must fit between dropouts.

• Axle diameter: Must fit dropout holes.

• Spoke count: Should match rim.

• Sprocket interface: Should fit chainline and gearing needs.

Popular aftermarket brands: Warp 9, KO Moto, Talaria (compatible in some cases), and custom CNC shops. Buy Surron Light Bee Wheel Hub Assembly Online In Europe

---

7. Performance Considerations

7.1. Weight

• Lighter hubs reduce rotational inertia.

• Aluminum hubs balance strength and weight well.

• Riders may upgrade to titanium bolts or ceramic bearings to shave grams.

7.2. Rolling Resistance

• Influenced by bearing quality and preload.

• Good hubs spin freely with no side-play.

• Tapered or angular contact bearings resist axial loads better.

7.3. Strength and Durability

• Off-road use demands fatigue resistance.

• Flange size and spoke tension crucial to prevent cracking.

• Bearings should resist dust, mud, and water ingress.

---

8. Maintenance Guide

Regular maintenance extends the life and performance of the hub.

8.1. Tools Required

• Allen keys or hex wrenches

• Torque wrench

• Bearing press or drift set

• Grease and anti-seize

• Pick tool for seals

8.2. Inspection Checklist

• Spin wheel: Look for noise, resistance, or wobble.

• Check play: Push wheel side-to-side to detect bearing wear.

• Rotor alignment: Ensure rotor spins true without rub.

• Spoke tension: Even and firm.

• Hub flanges: Look for cracks or deformities.

8.3. Cleaning and Lubrication

• Remove wheels and clean with degreaser.

• Avoid high-pressure water near bearings.

• Re-grease bearing interfaces annually or after heavy mud exposure.

8.4. Bearing Replacement

• Press out old bearings carefully.

• Clean bore and apply light grease.

• Press in new sealed bearings using drift tool.

---

9. Common Issues and Solutions

---

10. Light Bee Hub Assembly vs Other E-Bike Hubs

The Light Bee hub strikes a balance between MTB agility and moto durability, ideal for its hybrid role.

---

11. Customizing and Upgrading the Hub

Popular Upgrades

• Warp 9 Wheel Sets with anodized hubs.

• Titanium axles and bolts for weight reduction.

• Ceramic hybrid bearings for smoother performance.

• Floating rotors for improved heat management.

• Custom anodized colors to match bike styling.

Why Upgrade?

• Aesthetics (black/red, gold, etc.)

• Performance (faster spin-up, less drag)

• Strength (for jumping, enduro use)

• Weight savings (critical in race builds)

---

12. Conclusion

Buy Surron Light Bee Wheel Hub Assembly Online In Europe is a deceptively simple yet deeply engineered component, crucial to the bike’s handling, durability, and speed. From its forged or machined aluminum shell to its sealed bearings and rotor interfaces, each part plays a critical role in performance — especially under the harsh conditions of trail riding, jumping, and racing.

Whether you’re a casual rider or a high-performance modifier, understanding your wheel hub’s design, construction, and maintenance is essential. Upgrades can further enhance performance, while regular inspection ensures safety and longevity. As e-bike technology evolves, expect hubs to get even lighter, stronger, and smarter — possibly with integrated sensors or adaptive torque management in future models.
